Basic analog electrical components
In version 0.2.6 (alpha) based by Python 2.7.12 software with revision of Modeling of Analog Blocks "basic and source" in PyAMS language.
This version contains basic analog electrical components:
This version contains basic analog electrical components:
Resistor
Inductor
Capacitor
Polarised Capacitor
Conductor
Quartz
Transformer
Symmetrical transformer
Gyrator
Linear controlled sources (VCV, VCC, CCV, CCC)
Inductor
Capacitor
Polarised Capacitor
Conductor
Quartz
Transformer
Symmetrical transformer
Gyrator
Linear controlled sources (VCV, VCC, CCV, CCC)
Friday, 16 June 2017
Amplifier Non-inverting by uA741
Amplifier Non-inverting by uA741
Circuit:
Vout by Vin
macro model of uA741 by SPICE:
Ref:
FSK with PLL (phase locked loop)
FSK Digital Frequency Modulation
FSK demodulation with PLL (phase locked loop)
Circuit:
Function FSK by Vin:
Function V_xor by FSK:
Function Vco by Vf1:
Function Vout by Vin and Vtr:
Ref:
2. Software: www.pyams.com
Tuesday, 16 May 2017
Monday, 15 May 2017
Saturday, 13 May 2017
Wednesday, 10 May 2017
Sunday, 7 May 2017
Saturday, 6 May 2017
Friday, 5 May 2017
Wednesday, 3 May 2017
Tuesday, 2 May 2017
Astable Multivibrator
Astable Multivibrator: left) the circuit, right) the Waveforms for voltage input and output
Ref
Full-wave rectification
Full-wave rectification: left) the circuit, right) the Waveforms for voltage input and output
Ref.
Monday, 1 May 2017
The Diode Bridge Rectifier
The Diode Bridge Rectifier: left) the circuit, right) the Waveforms for voltage input and output
Ref.
Power Diodes and Rectifiers
The Half-Wave by diode: left) the circuit, right) the Waveforms for voltage input and output.
Power diodes can be used individually as above or connected together to produce a variety of rectifier circuits such as “Half-Wave”, “Full-Wave” or as “Bridge Rectifiers"
Ref
Friday, 28 April 2017
Charge and discharge of a capacitor
The Charge and discharge of a capacitor circuit: left) the circuit, right) the Waveforms for voltage input and output.
In the previous RC Charging and Discharging tutorials, we saw how a capacitor has the ability to both charge and discharges itself through a series connected resistor.
1.http://www.electronics-tutorials.ws/rc/rc_3.html
2.http://electronicsarea.com/capacitor-discharge-process/
Voltage divider
Sample voltage divider circuit

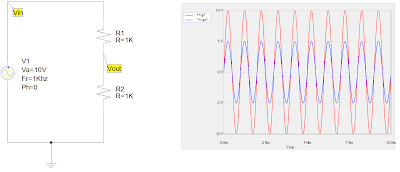

The voltage divider circuit “Vout=Vin/2”: left) the circuit, right) the Waveforms for voltage input
and output.
References
